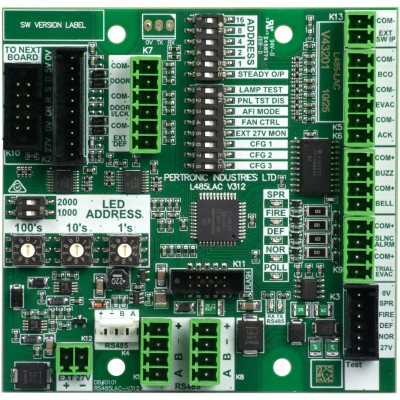

The L485LAC2 (RS485 LED Address Controller) provides various options for connecting devices to Pertronic F220 and F100 fire alarm panels.

These are configured as LED Mimics, and maybe mounted internally in the F220/F100, or externally as remote devices - where inputs and outputs can be available locally.

It is often used with Pertronic LED Display Boards to provide LED indications (e.g. indicating zones with active alarms).

Features:

• RS485 LED Mimic Address set by DIP switches
• Pulsed or steady output LED display
• Drive multiple LED Display, Relay and/or Open Collector output over a 10-way ribbon cable 'chain'
• On board fault diagnostic LED indicator
• Closed-loop monitoring: door switch, door interlock and external defect
• Onboard Lamp Test and Base Address check
• External Power monitored input for driving large numbers of LED display/relay boards

---
